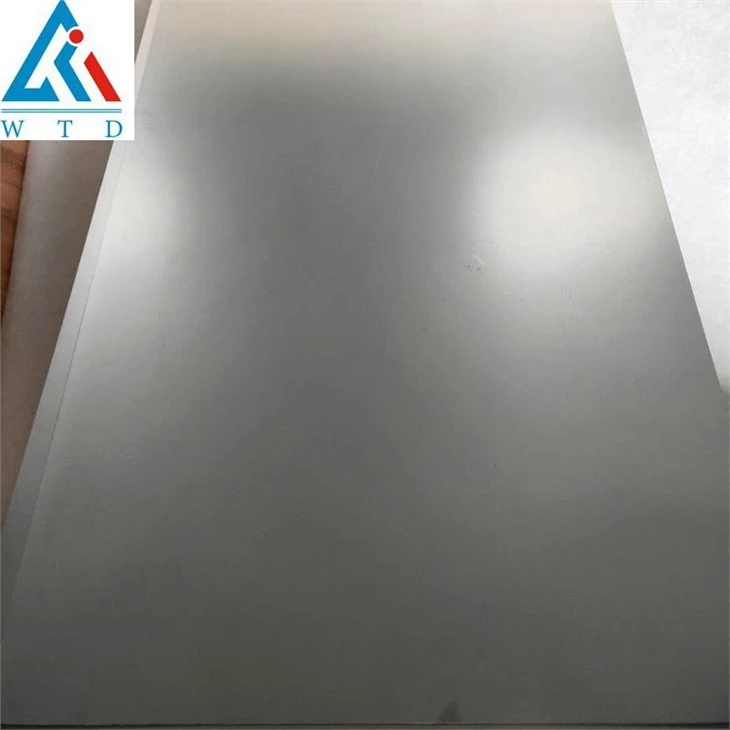

Titanium Grade 7 Sheet
Thickness: Ranging from 0.3mm to 20mm
Hardness: As per ASME A & NACE MR 175
Finish: Hot rolled plate (HR), Cold rolled sheet (CR)
Standard: ASTM B265 / ASME SB265
Thickness: Ranging from 0.3mm to 20mm
Hardness: As per ASME A & NACE MR 175
Finish: Hot rolled plate (HR), Cold rolled sheet (CR)
Length: 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Width: 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Titanium Grade 7 Sheet Equivalent Grades
STANDARD | WERKSTOFF NR. | UNS |
Titanium Grade 7 | 3.7235 | R52400 |
Chemical Composition of Ti Alloy Grade 7 Sheet
Grade | N | C | H | Fe | O | Pd | Residuals |
Titanium Gr 7 | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.12 - 0.25 | 0.40 max |
Mechanical Properties of Titanium Gr 7 Sheet
Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
4.51 g/cm3 | 1660 °C | 485 MPa | 350 MPa | 28 % |
